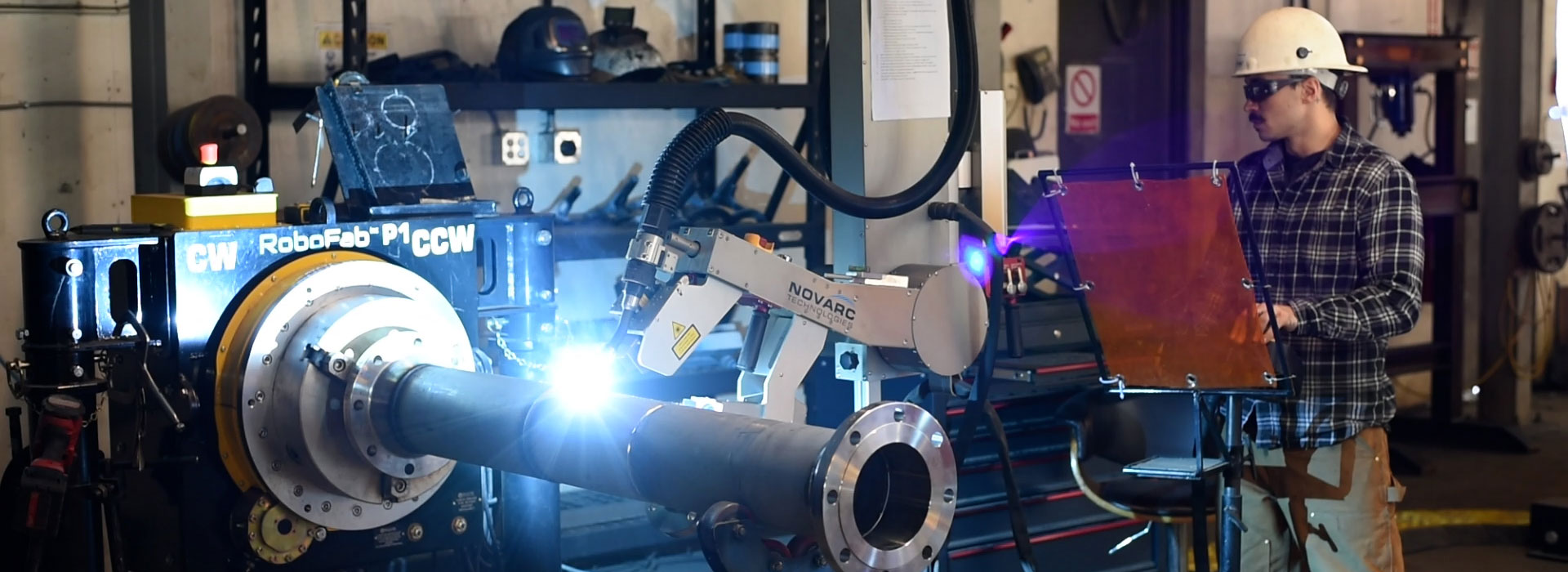

A worker in a hard hat and safety glasses operates a robotic welding arm on a large metal pipe in an industrial workshop. Shelves with tools and equipment are visible in the background.
Resources

NovPlan Examples

Projects

These example projects already have all the welds identified and planned for you, so you can download and simulate them straight away in your trial copy of NovPlan. You also need to download and install the corresponding workcell.

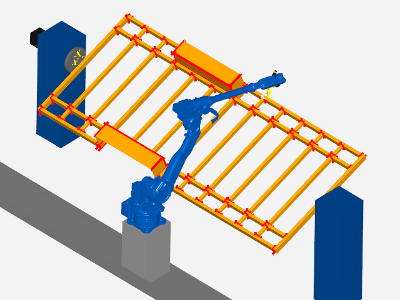

Trailer example project
Trailer frame

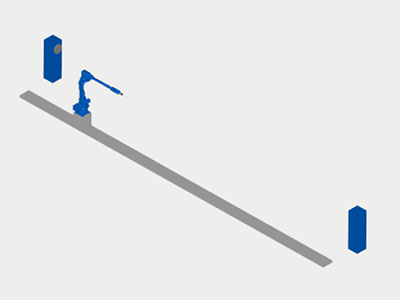

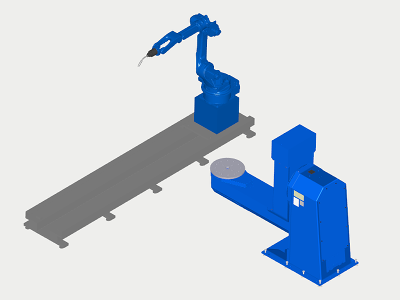

A trailer frame constructed of RHS sections. Planned in the “Yaskawa with large positioner” work cell.

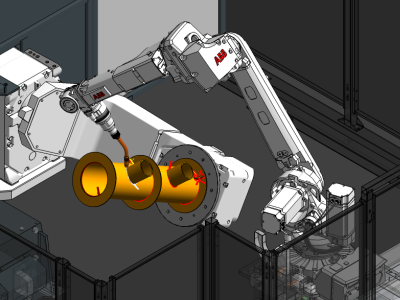

Pipe assembly example project
Pipe assembly

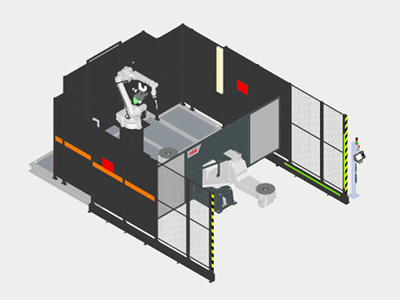

A pipe assembly with pipe-to-pipe joins and stiffeners. Planned in the “ABB FlexArc” work cell.

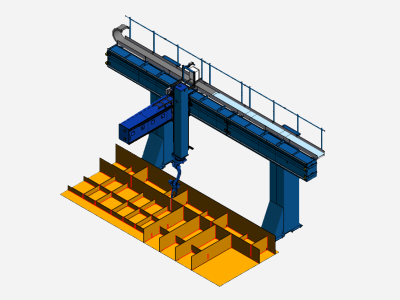

Ship panel example project
Ship panel

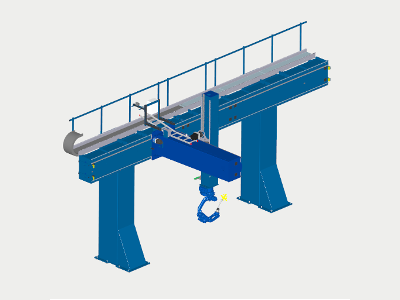

An example shipbuilding panel, planned in the “Yaskawa with Gantry” work cell.

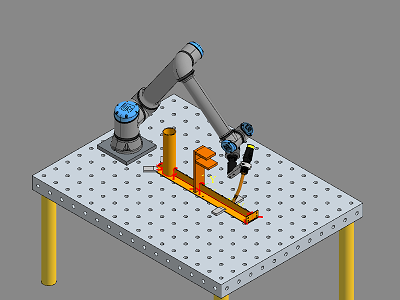

Verbotics Weld screenshot with small assembly
Small Assembly
A small example assembly mounted on a fixture table.
